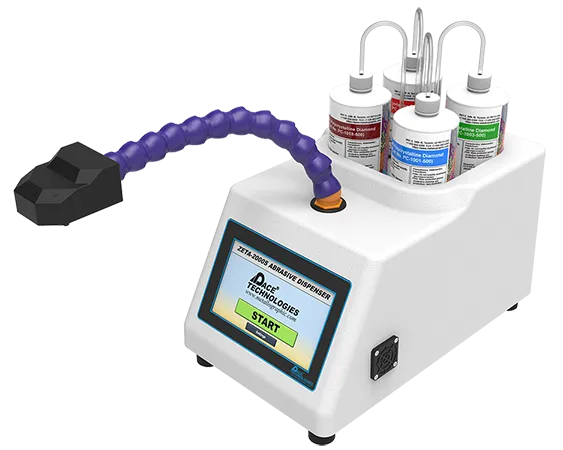

ZETA-2000S Automated Abrasive Dispenser
The ZETA-2000S is an advanced automated abrasive dispenser designed to enhance the precision and efficiency of your metallographic sample preparation process. Equipped with programmable peristaltic pumps, it allows for exact metering of abrasives and lubricants, ensuring consistent and reproducible polishing results. The intuitive touchscreen interface offers easy control over dispensing parameters, making the ZETA-2000S an essential tool for laboratories that demand accuracy and repeatability.
ZETA-2000S Automated Abrasive Dispenser
ZETA-2000S - Automated Abrasive Dispenser
Features

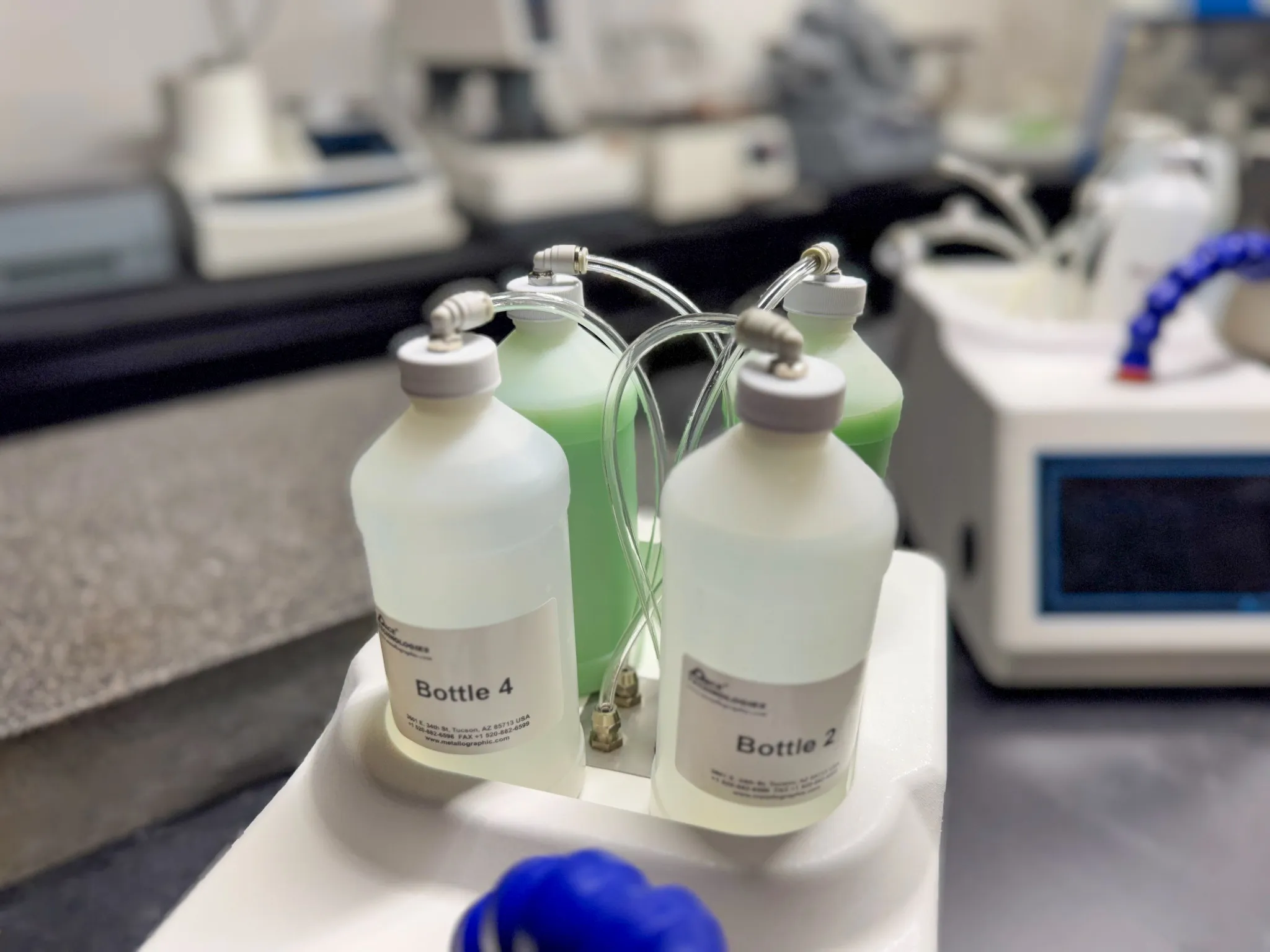

- Precision Dispensing: Four programmable peristaltic pumps deliver abrasives and lubricants with accuracy and consistency.
- Flexible Control: Supports both manual and automated modes for versatile sample preparation.
- User-Friendly Interface: 7-inch touchscreen enables quick adjustments to dispensing frequency, duration, and flow rate.
- Compact Design: Small footprint and robust construction make it suitable for any lab environment.
Technical Specifications - ZETA-2000S
| Parameter | Specification |
|---|---|
| Pumps | 4 (24v) dedicated, programmable peristaltic pumps |
| Flow Rates | 1.2 - 90 ml/min |
| Controls | 7-inch programmable touchscreen interface |
| Electrical Specifications | 110V or 220V 50/60 Hz |
| Dimensions (WxDxH) | 9.5 x 11 x 12 inches (240 x 270 x 300 mm) |
| Weight | 20 lbs (9 kg) |
| Part Number | ZETA-2000S |
