Metallographic sample preparation is the process of preparing material samples for microstructural analysis. It involves sectioning (cutting), mounting (embedding in resin), grinding (removing material with abrasives), polishing (achieving a smooth surface), and etching (revealing microstructural features) to enable examination under a metallurgical microscope. This process is essential for quality control, failure analysis, and materials research in industries including aerospace, automotive, biomedical, and materials testing.

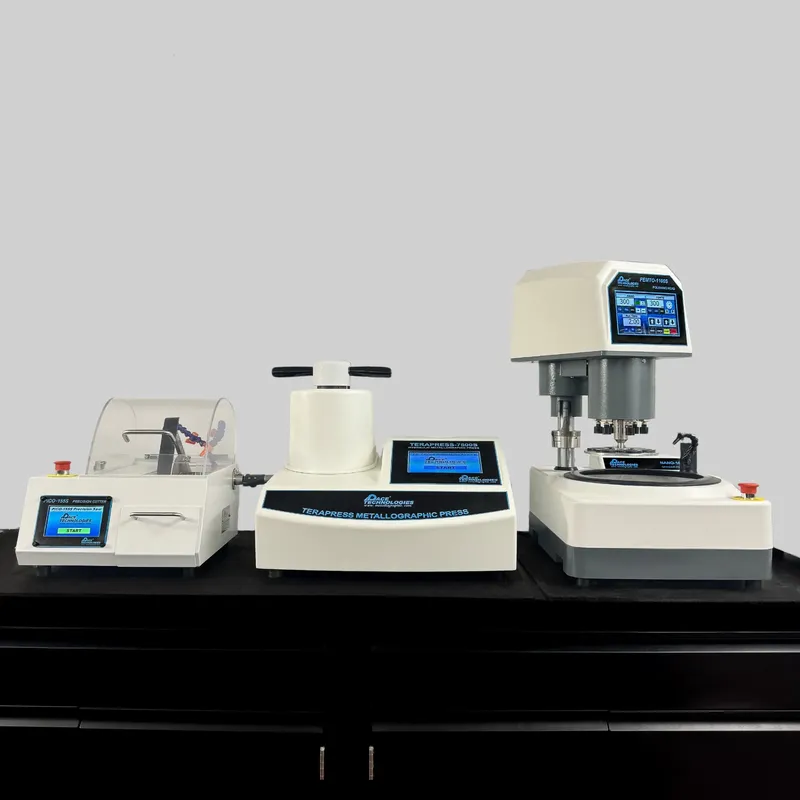

A complete metallography lab requires sectioning equipment (precision cutters or abrasive saws), mounting equipment (compression or castable mounting presses), grinding and polishing equipment (grinder-polishers or separate grinders and polishers), etching supplies, and analysis equipment (metallurgical microscopes and optionally hardness testers). The specific equipment depends on your sample volume, material types, and analysis requirements. Our "Build Your Lab" tool can help guide you through the selection process based on your specific needs.

Selecting the right metallographic equipment depends on several factors: your sample volume and throughput requirements, material types you'll be preparing (steels, aluminum, titanium, ceramics, composites), available budget, and space constraints. Consider whether you need manual or automated systems, the level of precision required, and your long-term growth plans. Our "Build Your Lab" tool can help guide you through the selection process based on your specific needs. For personalized recommendations, contact our technical support team at +1-520-882-6598.

Manual polishing systems require operator control of pressure, speed, and time for each step. They offer flexibility and are cost-effective for low to medium volume labs. Automated systems provide programmable cycles with consistent parameters, reducing operator time and ensuring repeatable results, ideal for high-volume production environments and standardized procedures. Automated systems also reduce operator fatigue and can improve consistency across multiple samples.

Essential metallographic consumables include cutting blades and fluids for sectioning, mounting resins and molds for mounting, grinding papers and SiC powders for grinding, diamond compounds and polishing pads for polishing, polishing cloths, etchants and cleaning solutions, and mounting accessories. The specific consumables depend on your material types and preparation requirements. Our material-specific preparation guides provide detailed recommendations.

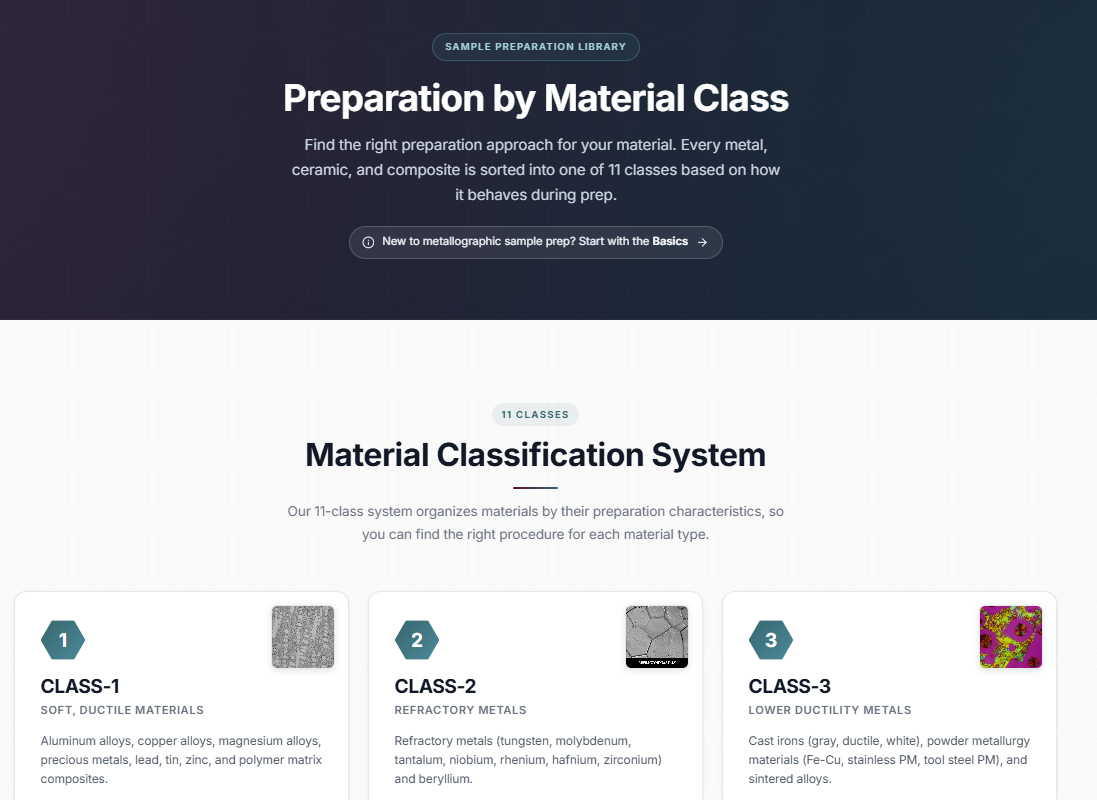

Yes, material-specific consumables are important for optimal results. Hard materials like tool steels and ceramics may require diamond abrasives and specific polishing compounds, while softer materials like aluminum work well with silicon carbide papers and gentler polishing procedures. Our material-specific preparation guides provide detailed recommendations for consumable selection based on your material type, including grit progressions, polishing times, and etchant selection.

Polishing cloths should be replaced when they show visible wear, contamination, or when polishing quality degrades. Diamond compounds typically last for multiple samples, but should be refreshed when cutting efficiency decreases. Silicon carbide grinding papers are single-use and should be replaced after each sample or when the abrasive is worn. Regular replacement ensures consistent preparation quality and prevents contamination between samples.

The best hardness tester depends on your application. Rockwell testers are ideal for general hardness testing on larger samples. Microhardness testers (Vickers or Knoop) are essential for testing small features, heat-affected zones, and individual phases in microstructures. For metallographic applications requiring precise measurements on specific microstructural features, a microhardness tester is typically recommended. Our hardness testing equipment page provides detailed specifications and application guidance.

Yes, our preparation guides focus on techniques and procedures that are applicable regardless of equipment brand. The principles of metallographic sample preparation, including grit progression, pressure application, polishing times, and etching procedures, are universal. However, specific equipment settings may need adjustment based on your system's capabilities. Our guides provide general principles that can be adapted to any quality metallographic equipment.

PACE Technologies offers complete metallographic equipment and consumables through our website, online shop, and international distribution network. You can browse our equipment catalog, request quotes for custom lab configurations, or purchase consumables directly from our online shop at shop.metallographic.com. We serve customers worldwide and offer technical support, installation services, and training programs. Contact us at +1-520-882-6598 or visit our contact page for assistance.
