RC-1000A Recirculating Filter System
RC-1000A Recirculating Filter System
Item ID: RC-1000A

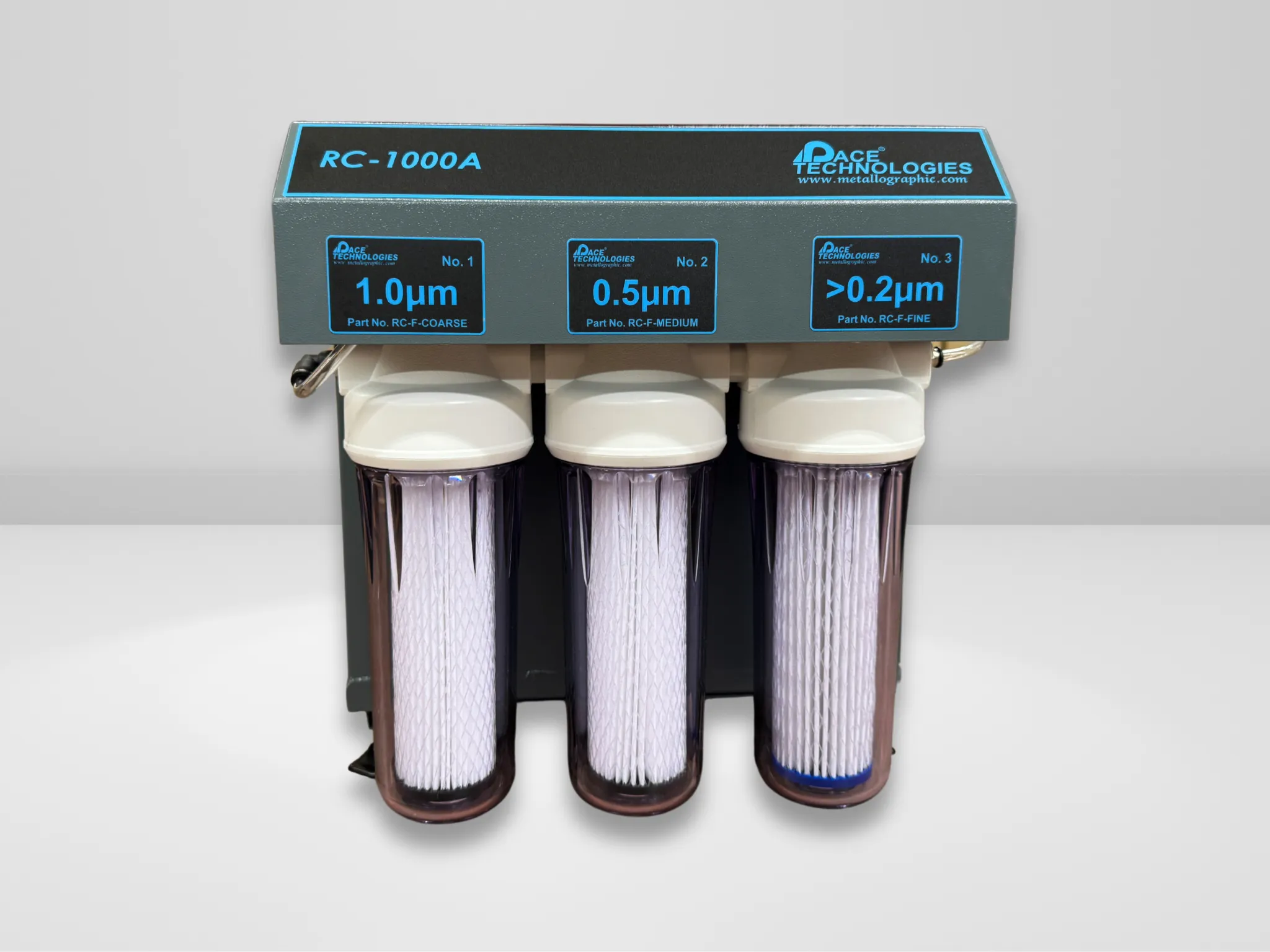

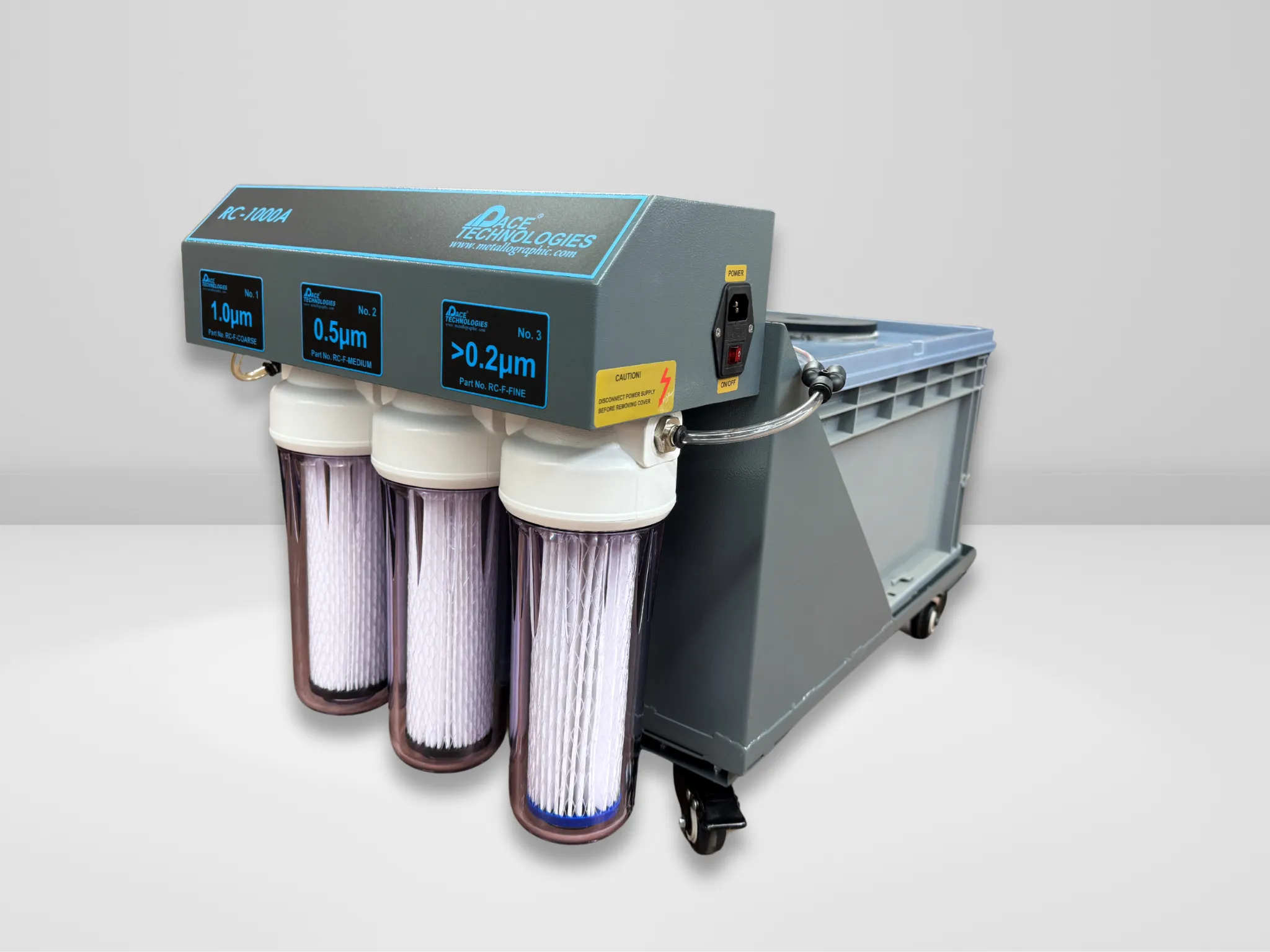

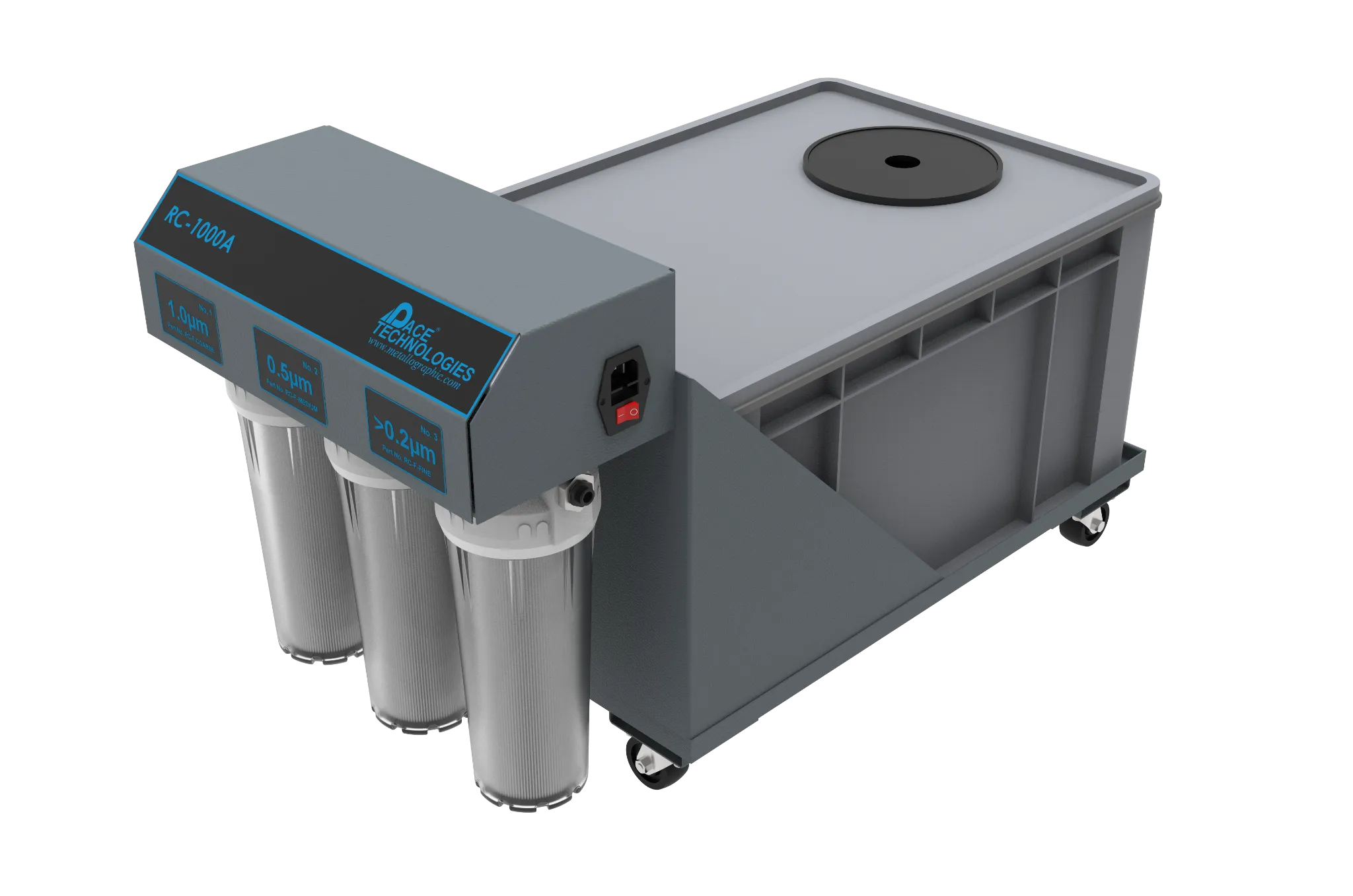

A portable recirculating filter system with multi-stage filtration down to 0.2 μm for pristine coolant water quality. Designed to pair with NANO series polishers without wasteful drainage.
Features
- Multi-stage filtration captures particles down to 0.2 μm
- Portable, compact design for easy lab mobility
- Recirculating operation eliminates wastewater drainage
- Pairs directly with NANO series polishers
Technical Specifications
| Parameter | Specification |
|---|---|
| Filters | Coarse (2 straining filters) / Fine (0.2, 0.5, and 1 μm) |
| Pump | 24VDC Diaphragm Pump - 1.3 GPM, 5 L/min |
| Tank Volume | 14 gallons (53 L) |
| Dimensions (WxDxH) | 32 x 16 x 20 inches (800 x 420 x 500 mm) |
| Weight | 30 lbs (14 kg) |
| Part Number | RC-1000A |
