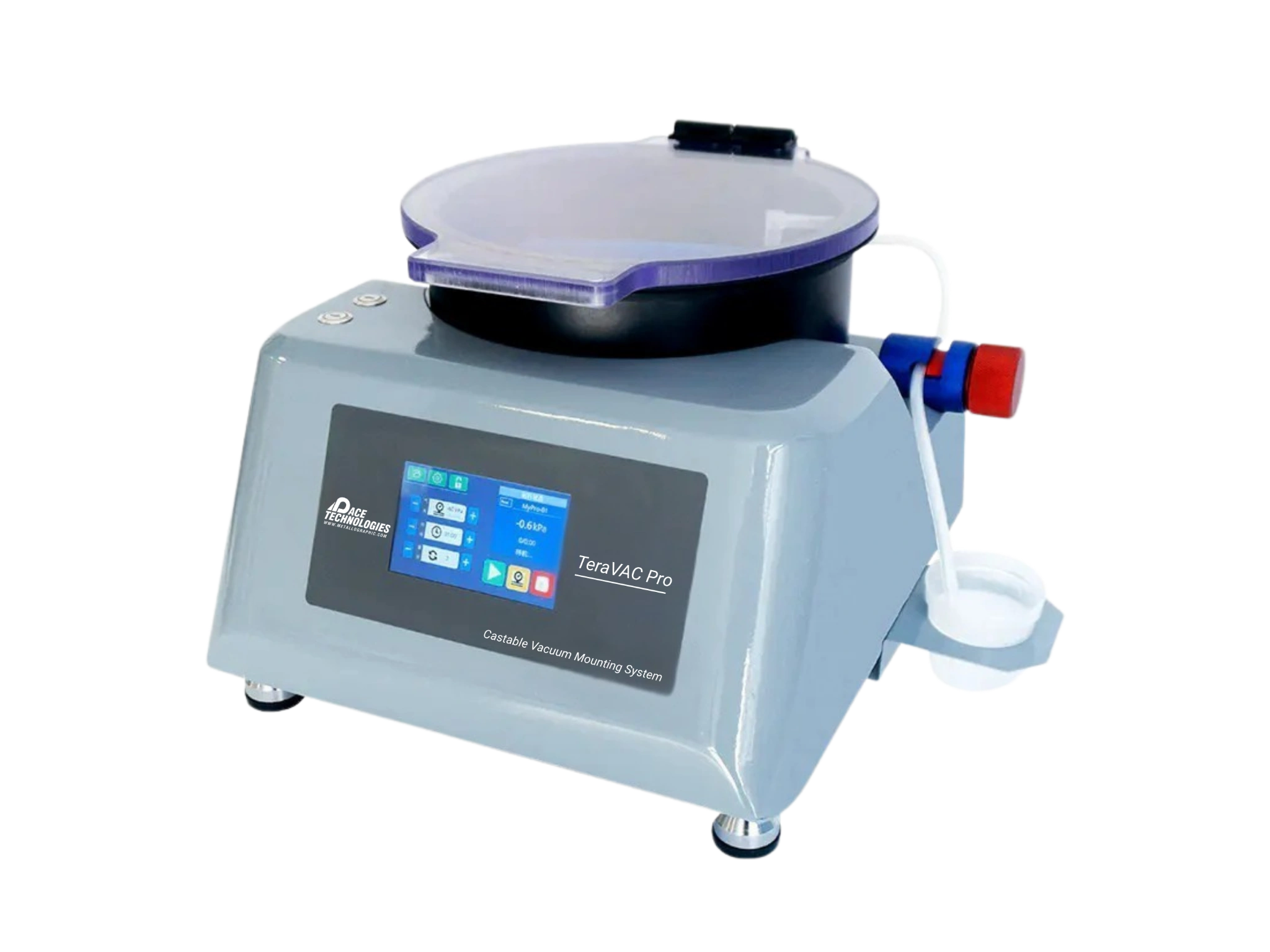

TeraVAC Pro Programmable Vacuum Impregnation Chamber
Item ID: TeraVAC Pro
A programmable vacuum impregnation system with automated cycle control, integrated rotating table, and capacity for up to 12 samples. Eliminates air bubbles during casting for void-free metallographic mounts.
Need a simpler solution? See the TeraVAC for a basic, economical vacuum mounting option.

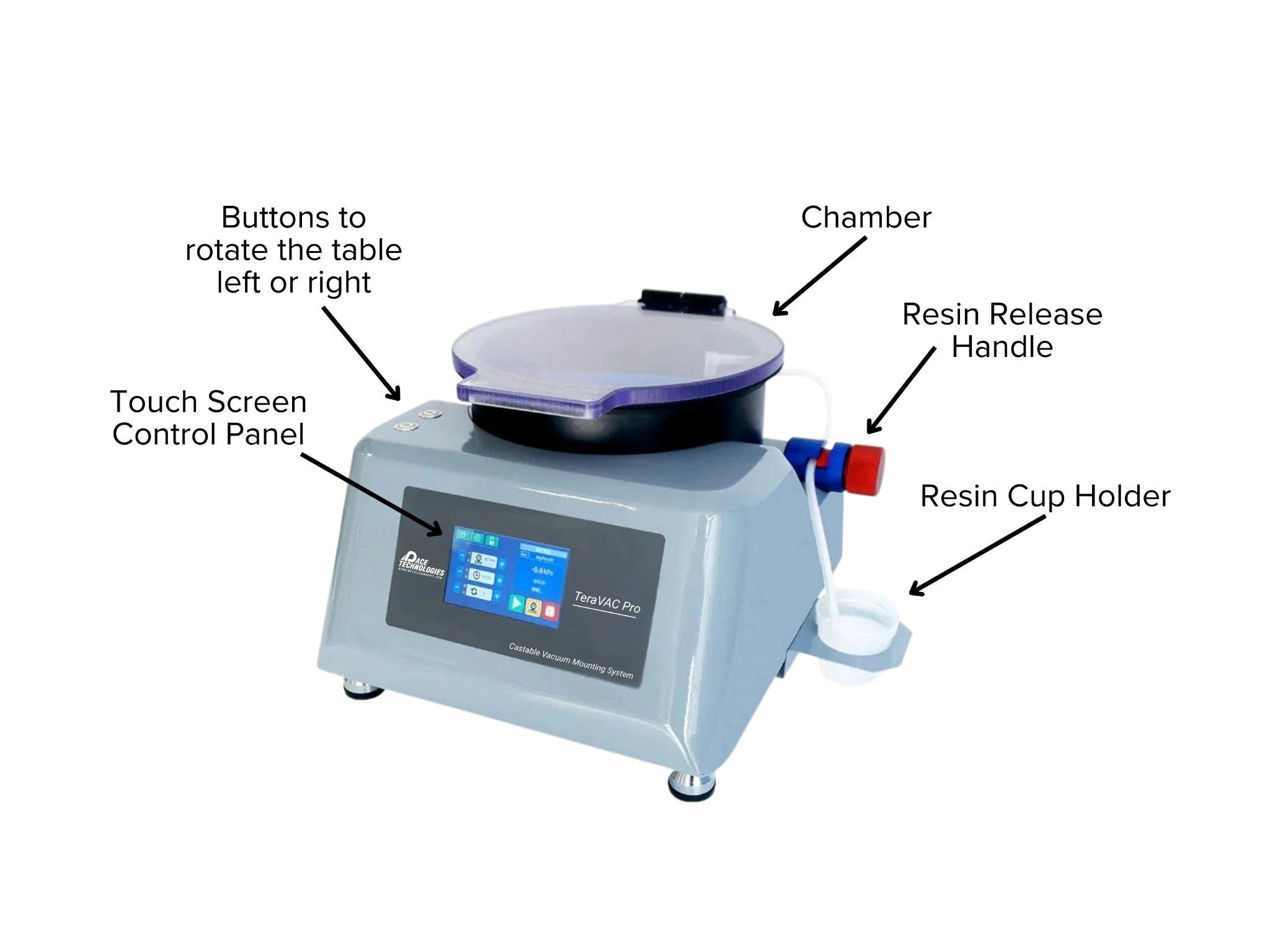

Features
- Vacuum pouring for air bubble-free mounting
- Programmable vacuum level, cycle count, and timing

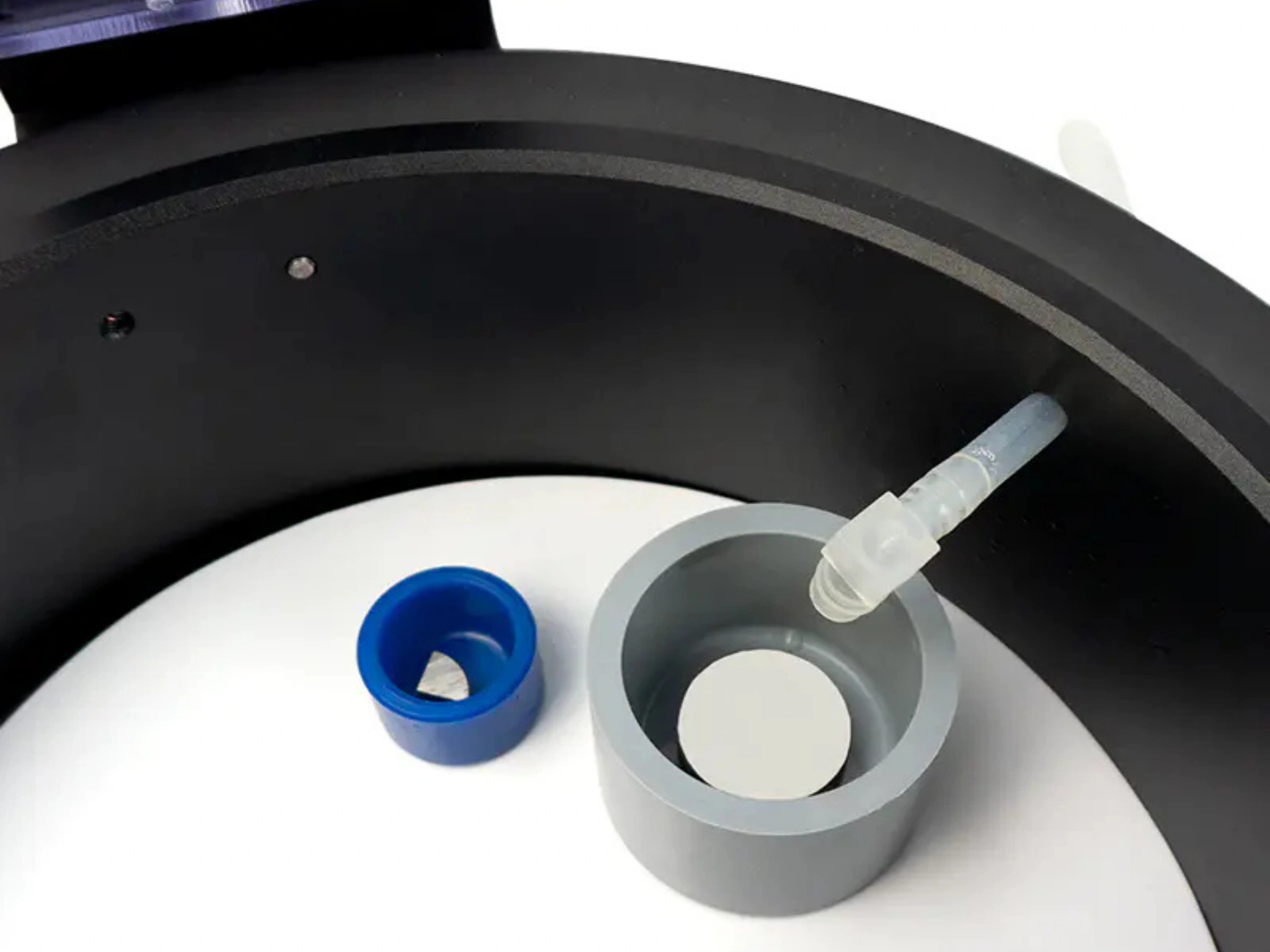

- Chamber capacity up to 12 samples at 1.5-inch (40 mm)
- Built-in rotating table for efficient mold positioning
Technical Specifications
| Parameter | Specification |
|---|---|
| Control Interface | 5-inch touch screen |
| Chamber Capacity | Up to 12 samples - 1.5-inch (40 mm) diameter |
| Vacuum Range | 0-90 kPa |

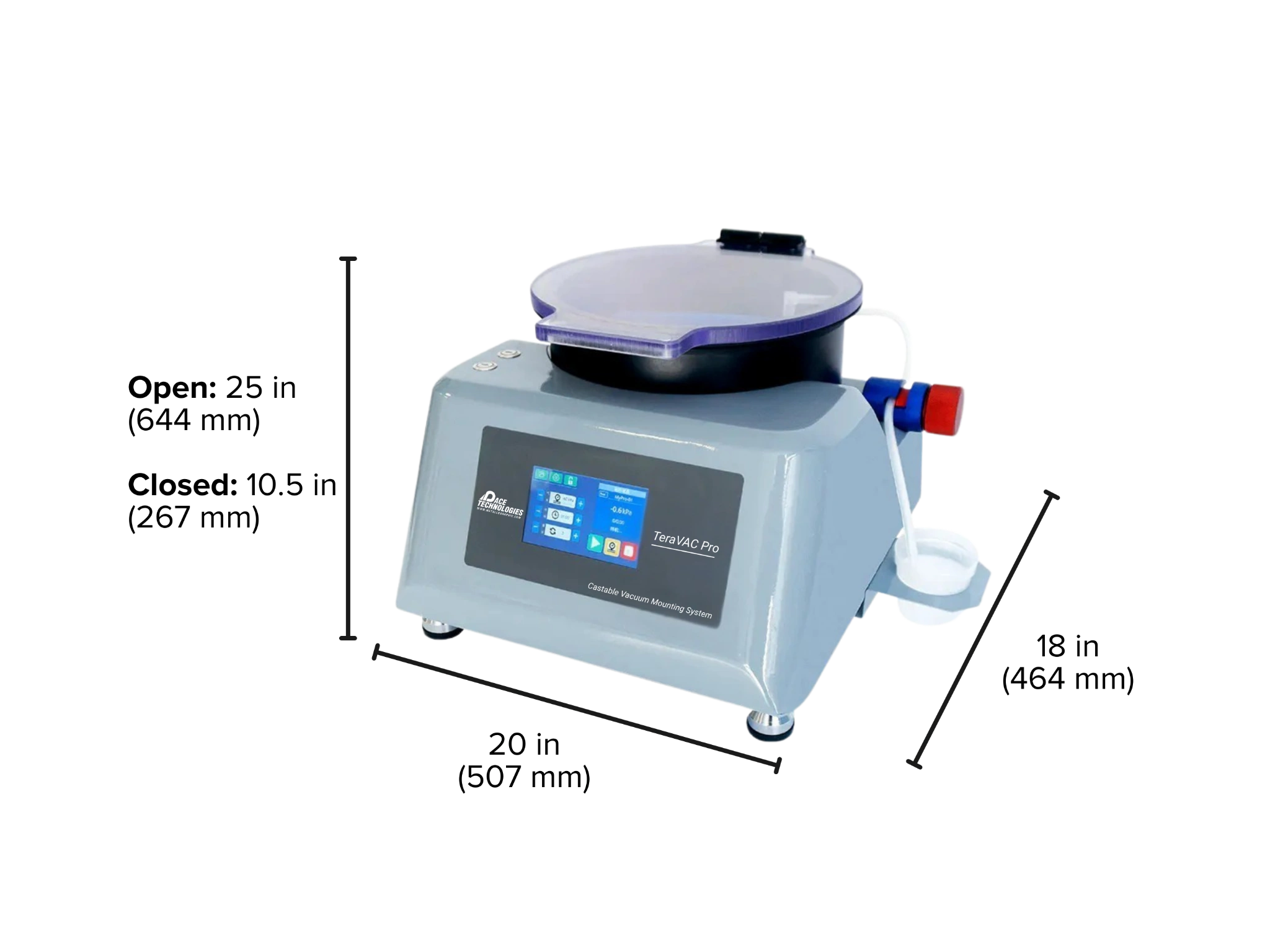

| Dimensions (WxDxH) | Open: 20 x 18 x 25-inch (507 x 464 x 644 mm) / Closed: 20 x 18 x 10.5-inch (507 x 464 x 267 mm) |
| Weight | 40 lbs (18 kg) |
| Catalog Number | TeraVAC Pro |
