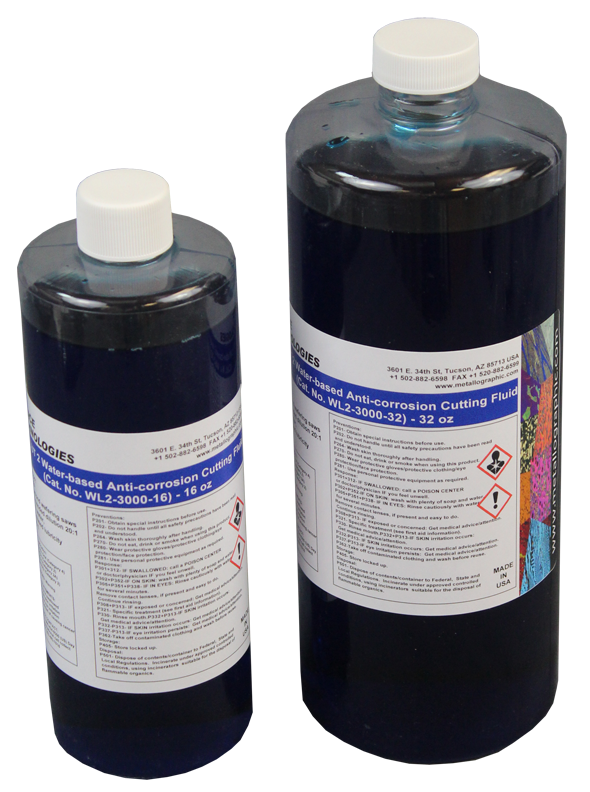

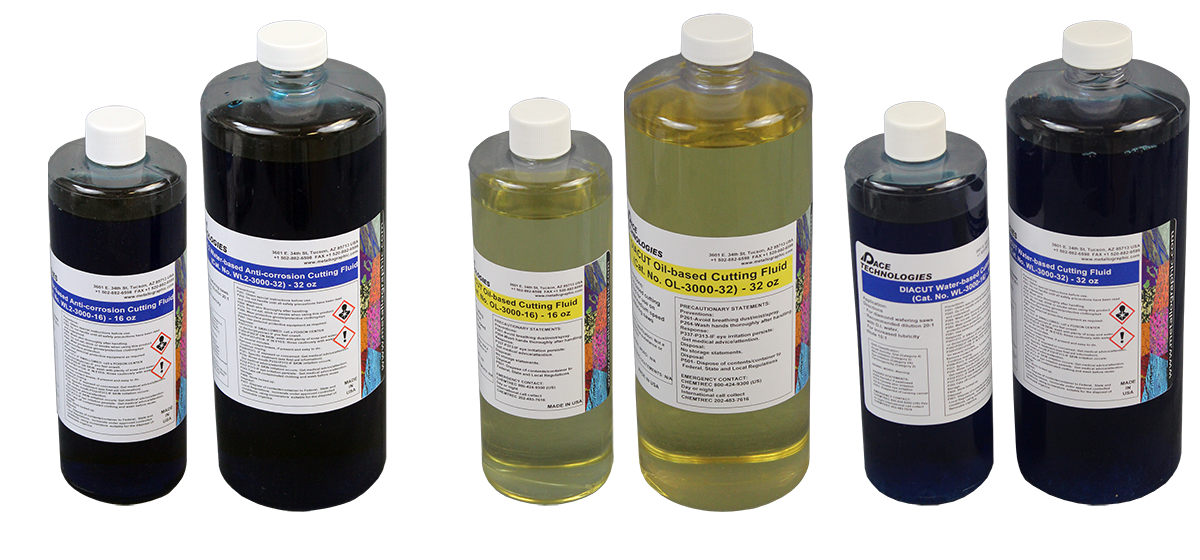

1 / 5 Precision Wafering Blades Diamond and/or CBN Abrasives) 2 / 5 Precision Wafering Blades with Stainless Steel Core 3 / 5 Electroplated Diamond Blades (soft / gummy materials) 4 / 5 Precision Cutting Abrasive Blades 5 / 5 DIACUT Cutting Fluid with anticorrosion formulation

• Abrasives:
  • Diamond: Hardest known abrasive, excellent for most materials (not recommended for heat-treated steels)
  • Cubic Boron Nitride (CBN): 2nd hardest known abrasive, used for cutting heat-treated steels
  • Hybrid: Combination of diamond and CBN, useful for all materials
• Abrasive Concentration:
  • Low Concentration: Recommended for cutting ceramics, glass, and minerals
  • High Concentration: Recommended for cutting metals and composite materials
• Abrasive Size:
  • Fine grit: 15 micron abrasive, for cutting brittle and easy-to-chip/fracture materials such as silicon chips and glass
  • Medium grit: 70 micron abrasive, for cutting more ductile materials
• Blade Core Material:
  • Steel core with copper flash: Most common precision wafering blade
  • Stainless steel core: More corrosion resistant and economical
• Abrasive Bond:
  • Pressed: Abrasive is mixed in a powder and pressed at high pressure
  • Electroplated: Diamond is plated in a nickel bond, raised abrasive for coarser cutting, useful for cutting soft smearable materials

Metallographic Precision Cutting
